Gauges, Gauging Fixtures

    Parameters Checked:

  • Seat Runout
  • Stem Diameter (3 Places or 2 Places. Depends on Parts)
  • Stem Ovality (as per no of Diameter Places)
  • Seat Height
  • Overall Length
  • Head Diameter
  • Head Runout
  • Datum to End
  • Datum to Groove
  • Groove Diameter
  • Reduced Diameter
  • Undercut Diameter
  • Groove Position
  • Stem Taper
  • Straightness or Bend
  • Face Runout
  • Cylindricity
  • Roundness

These parameters are getting checked using Contact Type Digital probe of Solatron (UK) Make.

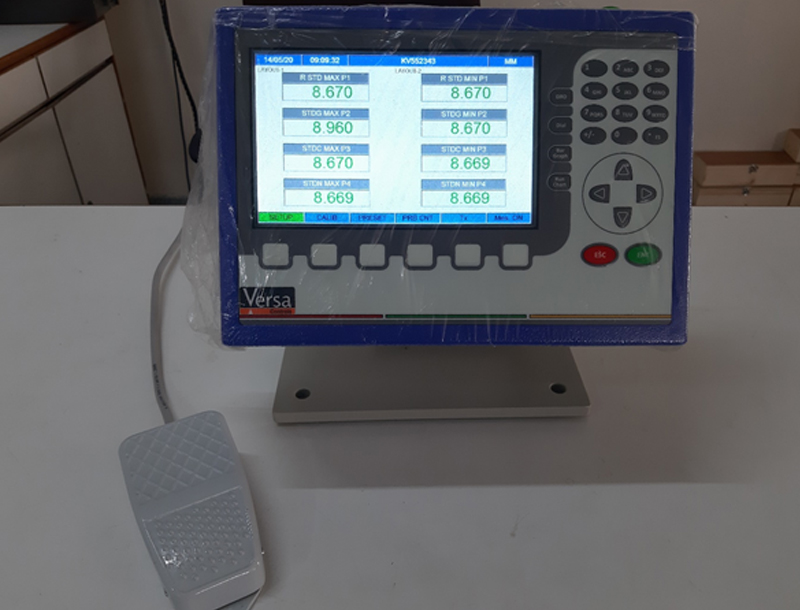

Windows Based application software used to display the results. Software also stores the measured data and displays the reports, graphs along with Cp, Cpk measurements. Software do have features to see Histogram, Run Chart and Normal Distribution.

Cycle time of measurement: 6 – 7 Secs

Note: These images are just for demo purpose. Original screens and Fixtures will vary or change based on customer requirements.

    Parameters Checked:

  • Outer Diameter at 3 Places D1, D2 and D4
  • PIN BORE Diameter (At 2 Places and 2 direction. Measured using Air Gauge JET)
  • Compression Height (2 Places)
  • Bowl Depth
  • Groove Diameter N1
  • Groove Diameter N2
  • Groove Diameter N3
  • Variation in Compression Heights
  • PIN Bore Diameter OFFSETS
  • Weight of the PISTON

These parameters are getting checked using Contact Type LVDT probe of Solatron (UK) Make.

In this Multigauge System, Laser Marking (2D or 3D) also been done for the Passed Component. Scanner also been used to scan and verify the marked Content Windows Based application software used to display the results. Software also stores the measured data and displays the reports, graphs along with Cp, Cpk measurements. Software do have features to see Histogram, Run Chart and Normal Distribution.

Cycle time of measurement: 25 - 30 Secs

Note: These images are just for demo purpose. Original screens and Fixtures will vary or change based on customer requirements.

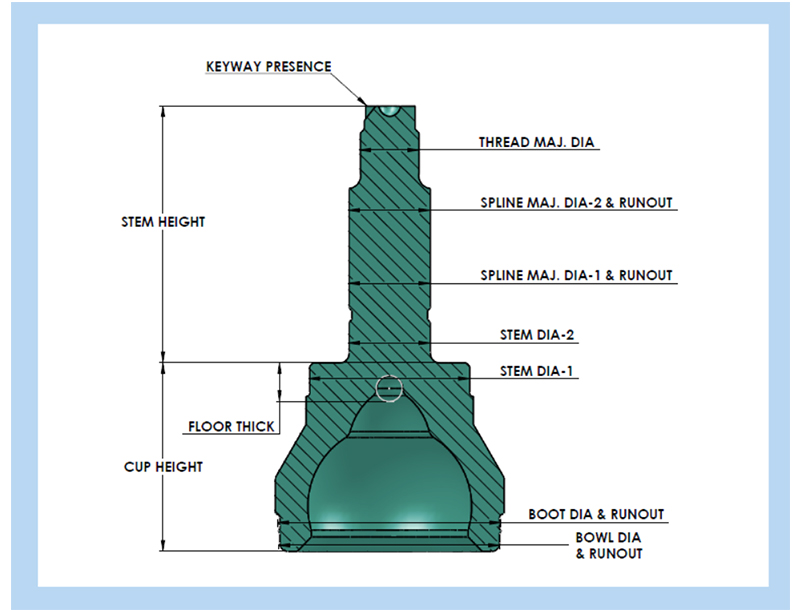

    Parameters Checked:

  • Spline Major Diameter at 2 Places
  • Stem Diameter at 2 Places
  • Thread Major Diameter
  • Boot Diameter
  • Bowl Diameter and Runout
  • CUP Height
  • Floor Thickness
  • Stem Height
  • Keyway Presence

These parameters are getting checked using Contact Type LVDT probe of Solatron (UK) Make.

Windows Based application software used to display the results. Software also stores the measured data and displays the reports, graphs along with Cp, Cpk measurements. Software do have features to see Histogram, Run Chart and Normal Distribution.

Cycle time of measurement: 10 - 12 Secs

Note: These images are just for demo purpose. Original screens and Fixtures will vary or change based on customer requirements.

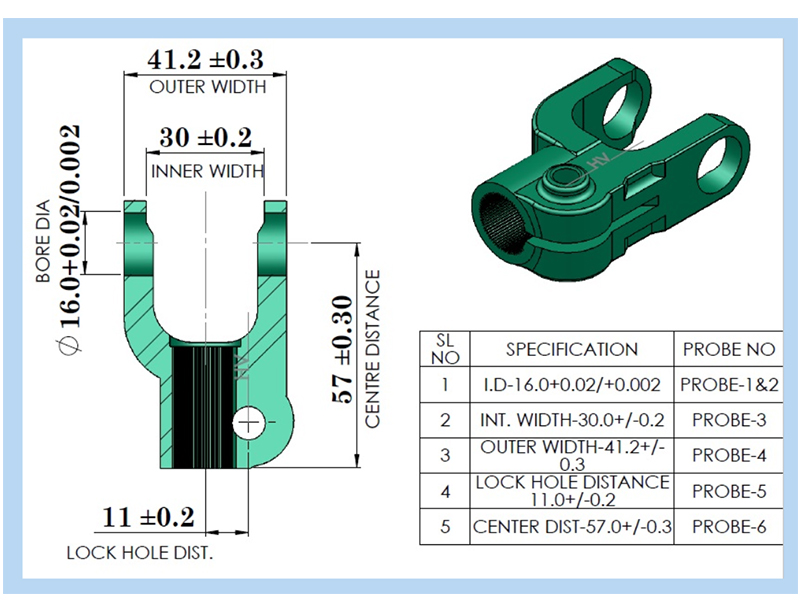

    Parameters Checked:

  • ID at 2 End
  • Inner Width
  • Outer Width
  • Center Distance
  • Lock Hole Distance

These parameters are getting checked using Contact Type LVDT probe of Solatron (UK) Make.

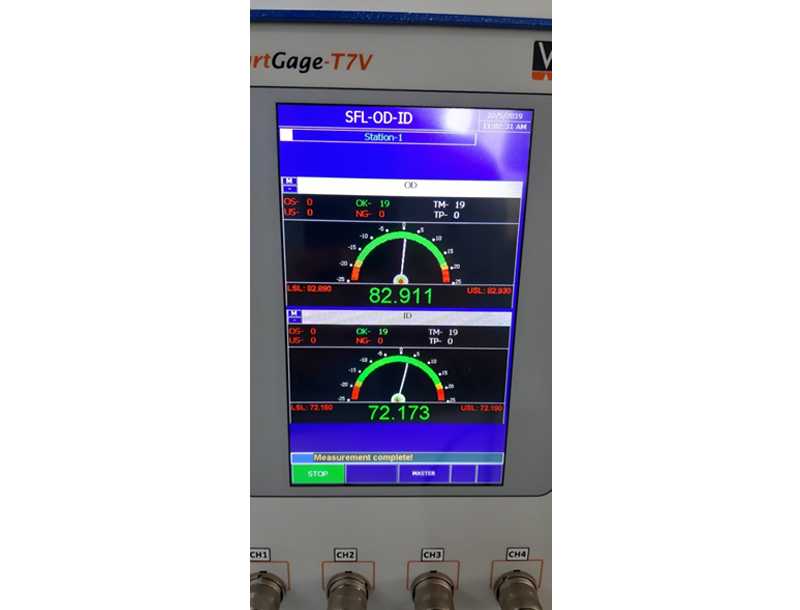

Windows Based application software used to display the results. Software also stores the measured data and displays the reports, graphs along with Cp, Cpk measurements. Software do have features to see Histogram, Run Chart and Normal Distribution.

Cycle time of measurement: 8 - 10 Secs

Note: These images are just for demo purpose. Original screens and Fixtures will vary or change based on customer requirements.
